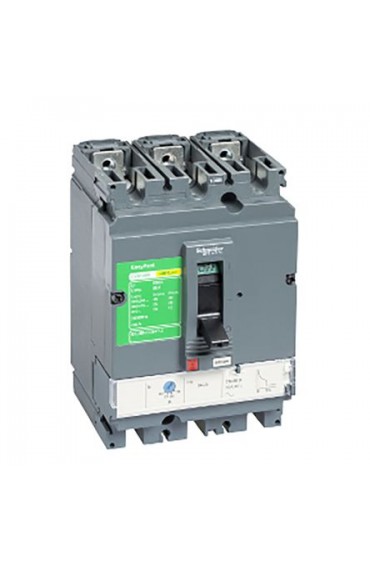

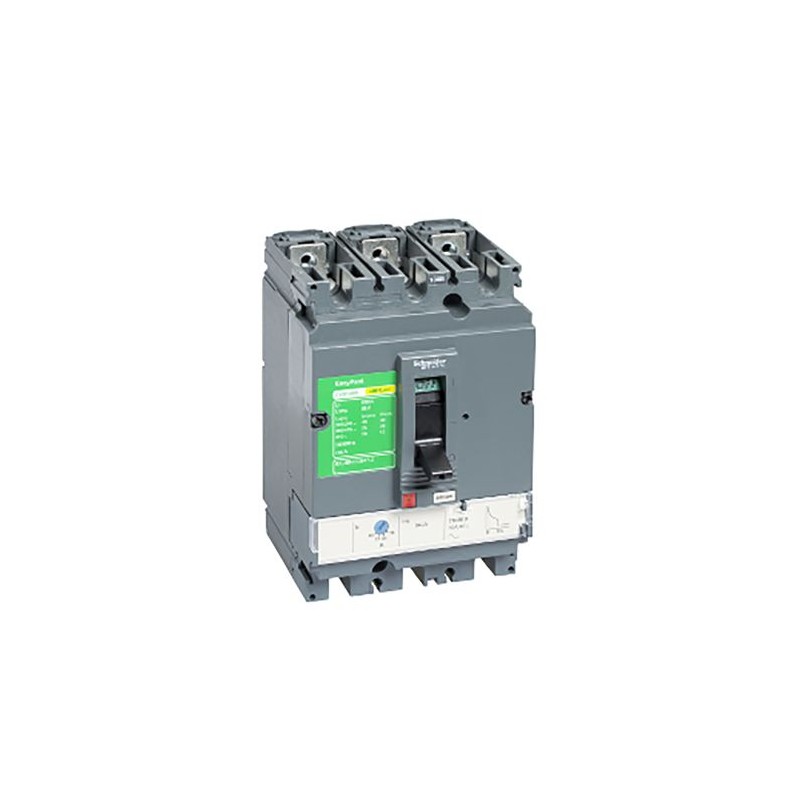

LV510306 EasyPact CVS100B circuit breaker

Referans: LV510306

Durum: Yeni ürün

Main
range of product	Easypact CVS100...250
product or component type	Circuit breaker
device short name	CVS100B
device application	Distribution
poles description	3P
protected poles description	3d
Earth leakage protection (Vigi add on)	Without
[In] rated current	100 A ( 40 °C )
breaking capacity code	B
network type	AC
[Icu] Breaking capacity	40 kA Icu conforming to IEC 60947-2 at 220/240 V AC 50/60 Hz 20 kA Icu conforming to IEC 60947-2 at 440 V AC 50/60 Hz 25 kA Icu conforming to IEC 60947-2 at 380/415 V AC 50/60 Hz
utilisation category	Category A
trip unit name	TM-D
trip unit technology	Thermal-magnetic
trip unit rating	80 A ( 40 °C )
protection type	Overload protection (thermal) Short-circuit protection (magnetic)

Complementary
network frequency	50/60 Hz
control type	Toggle
mounting mode	Fixed
mounting support	Backplate
upside connection	Front
downside connection	Front
connections - terminals	Screw connection
[Uimp] rated impulse withstand voltage	8 kV conforming to EN/IEC 60947-2
thermal protection adjustment range	56...80 A
[Ics] rated service breaking capacity	15 kA conforming to IEC 60947-2 440 V AC 50/60 Hz 25 kA conforming to IEC 60947-2 380/415 V AC 50/60 Hz 40 kA conforming to IEC 60947-2 220/240 V AC 50/60 Hz
mechanical durability	30000 cycles
electrical durability	12000 cycles conforming to IEC 60947-2 415 V In
connection pitch	35 mm
contact position indicator	Yes
long time pick-up adjustment type Ir	Adjustable
long time pick-up adjustment range	0.7...1 x In
long time delay adjustment type	Fixed
instantaneous pick-up adjustment type Ii	Fixed
instantaneous pick-up adjustment range	640 A
height	161 mm
width	105 mm
depth	86 mm
product weight	1.8 kg

Environment
electrical shock protection class	Class II
standards	EN 60947-2 IEC 60947-2
product certifications	GOST IEC
IP degree of protection	IP40
ambient air temperature for operation	-25...70 °C
ambient air temperature for storage	-50...85 °C
